Mixer, Music System, PMX-1632FX
PMX-1632FX
48V Phantom Supply on 4 Channels
AC Operation, With Digital Effects
- Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
- PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels.
- MIC/LINE Balanced Mono inputs with enhanced headroom.
- All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
- Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
- STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
- Separate EFFECT channel is provided for controlling the built-in digital effect processor
SKU: SEB-M-PAMCS-04 -
Medium Wattage PA Mixer Amplifiers, Mixer Amplifiers, Music System, SSA-100®M
SSA-100®M
100 WATTS
MEDIUM WATTAGE PA MIXER AMPLIFIER5 Mic & 2 Aux Inputs.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Instant transfer to DC power (Car Battery) if AC power fails.
Bass & Treble Tone Controls cut type.SKU: SEB-MA-MWMA-05 -
Mixer, Music System, PROMIX-1442R
PROMIX-1442R
With Built-in MP3 Recorder, 24 Digital Effects, 2 Group Outputs, 48V Phantom Supply on all Channels
AC Operation
- Professional mixer with user-friendly construction & aesthetically designed side panels.
- 12 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. 2 STEREO Balanced inputs.
- Built-in MP3 recorder with USB playback and Bluetooth facility.
- Digital multi EFFECTS processor with 24 built-in effects.
- LCD display for viewing the effects/USB settings.
- All MIC inputs are through 3 pin F/XLR connectors.
- All LINE & STEREO inputs are through 6.3mm (1/4”) stereo phone jack sockets.
- All MIC inputs are available with 48V phantom supply which can be switched ON/OFF.
- Each input channel has a GAIN control, 4 band active EQ controls, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
- The STEREO channel has a GAIN control, 3 band active EQ control, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
- Pre/Post selector switch for AUX1 and AUX2 in each channel.
- Channel MUTE switch provided on each individual channel.
- Peak LED for signal clipping indication. Signal LED for input signal indication.
- Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
- Stereo Tape Playback Input through L&R RCA sockets.
- Stereo Tape Output through L&R RCA sockets.
- Two group outputs through 6.3mm (1/4”) phone jack sockets and individual group faders.
- Monitor outputs through 6.3mm (1/4”) phone jack sockets and individual control.
- Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
- L&R AUX RETURN inputs with level control. PFL switch on each channel.
- Headphone output with Level Control for output monitoring.
- Operates on 240V 50Hz AC mains.
SKU: SEB-M-PAMCS-01

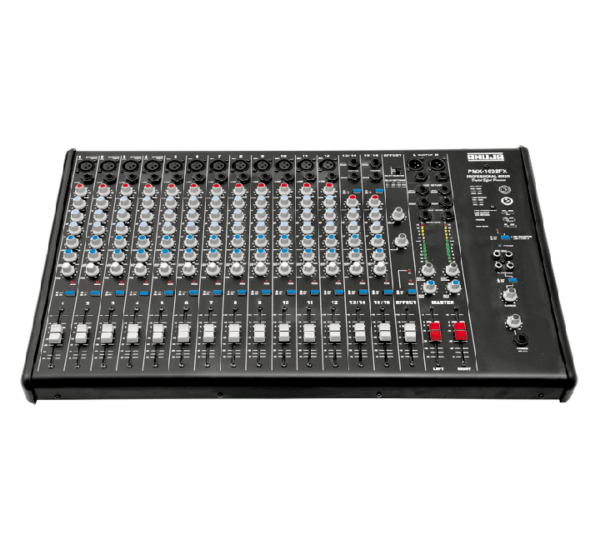

Mixer, Music System, PMX-1632FX
PMX-1632FX
Availability:
20 in stock
48V Phantom Supply on 4 Channels
AC Operation, With Digital Effects
- Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
- PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels.
- MIC/LINE Balanced Mono inputs with enhanced headroom.
- All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
- Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
- STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
- Separate EFFECT channel is provided for controlling the built-in digital effect processor
₹19,500.00
20 in stock
Compare
₹60,009.00 for 3 item(s)
MIC INPUT | . |
Impedance/Gain | 2kΩ Balanced/65dB |
LINE INPUT | . |
Impedance/Gain | 20kΩ Balanced/45dB |
STEREO INPUT (L/Mono & R) | . |
Impedance/Gain (-10dBu Input) | 10kΩ Balanced/14dB |
Impedance/Gain (+4dBu Input) | 10kΩ Balanced/0dB |
THD | <0.08% |
FREQUENCY RESPONSE | . |
L/R Line Output | 25Hz – 20kHz (+0, -1dB) |
EQUALIZATION | . |
Bass/Mid/Treble | ±12dB at 100Hz/2kHz/10kHz |
Clip LED Indication | 4 dB prior to true clip |
LINE OUTPUT | . |
Nominal/Max Level | 4dBu/21dBu (1.22V/9V) |
Impedance | 600Ω |
Delay System | Digital Signal Processing |
Delay Range Settings | 1: 60-300ms, 2: 300-500ms, 3: 500-650ms |
Headphone Output | 200mV at 8Ω, THD <1% |
MAXIMUM GAIN | . |
Mic Input to Line Outputs | 78dB |
Line Input to Line Outputs | 58dB |
Stereo Input to Line Outputs | 28dB (-10dBu Input), 14dB (+4dBu Input) |
AUX Send (Pre) | 1.4V/100Ω Unbalanced |
AUX Send (Post) | 2.7V/100Ω Unbalanced |
AUX Return (L&R) | 150mV/10kΩ Balanced |
TAPE | . |
Record Output | 250mV/600Ω |
Playback Input | 250mV/1kΩ (variable thru’ GAIN control) |
Signal to Noise Ratio | >70dB |
Power Supply | AC: 220-240V, 50Hz |
Dimensions | W609 × H110 × D435mm |
Weight | 9.7kg |
C Operation, With Digital Effects
- Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
- PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels.
