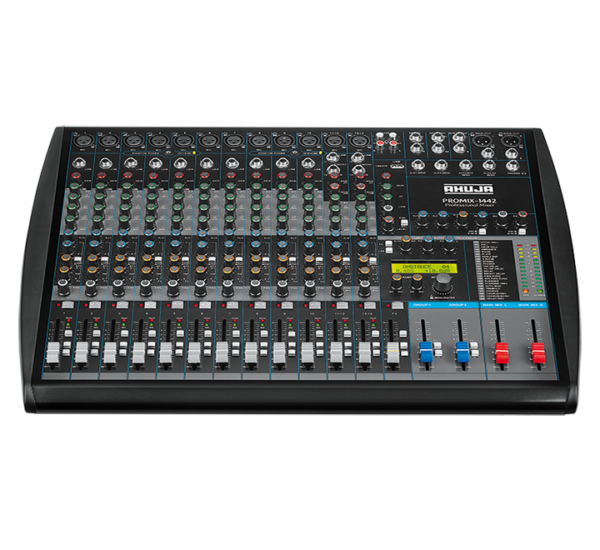

PROMIX-1442R
, ,

PROMIX-1442R

Availability:

20 in stock
Compare

With Built-in MP3 Recorder, 24 Digital Effects, 2 Group Outputs, 48V Phantom Supply on all Channels

AC Operation

  • Professional mixer with user-friendly construction & aesthetically designed side panels.
  • 12 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. 2 STEREO Balanced inputs.
  • Built-in MP3 recorder with USB playback and Bluetooth facility.
  • Digital multi EFFECTS processor with 24 built-in effects.
  • LCD display for viewing the effects/USB settings.
  • All MIC inputs are through 3 pin F/XLR connectors.
  • All LINE & STEREO inputs are through 6.3mm (1/4”) stereo phone jack sockets.
  • All MIC inputs are available with 48V phantom supply which can be switched ON/OFF.
  • Each input channel has a GAIN control, 4 band active EQ controls, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
  • The STEREO channel has a GAIN control, 3 band active EQ control, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
  • Pre/Post selector switch for AUX1 and AUX2 in each channel.
  • Channel MUTE switch provided on each individual channel.
  • Peak LED for signal clipping indication. Signal LED for input signal indication.
  • Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
  • Stereo Tape Playback Input through L&R RCA sockets.
  • Stereo Tape Output through L&R RCA sockets.
  • Two group outputs through 6.3mm (1/4”) phone jack sockets and individual group faders.
  • Monitor outputs through 6.3mm (1/4”) phone jack sockets and individual control.
  • Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
  • L&R AUX RETURN inputs with level control. PFL switch on each channel.
  • Headphone output with Level Control for output monitoring.
  • Operates on 240V 50Hz AC mains.
send enquiry

₹28,510.00

20 in stock

Compare
₹41,638.00 for 3 item(s)
MIC INPUT Impedance/Gain 2kΩ Balanced/65dB
LINE INPUT Impedance/Gain 20kΩ Balanced/45dB
STEREO INPUT (L/Mono & R) .
Impedance/Gain 10kΩ Balanced/20dB
THD <0.08%
Frequency Response 25Hz – 20kHz (+0, -1dB)
EQUALIZATION .
HI/HI-Mid/LOW-Mid/LOW ±12dB at 12kHz/2.5kHz/400Hz/80Hz
Clip LED Indication 4dB prior to true clip
Line Output Nominal/Max Level 4dBu/21dBu (1.22V/9V)
Impedance 600Ω
Digital Effects 24 Effects Digital Processor
Digital Player MP3 Player with Recording & BT Functions
Headphone Output 200mV at 8Ω, THD <1%
MAXIMUM GAIN .
Mic Input to Line Outputs 90dB
Line Input to Line Outputs 70dB
Stereo Input to Line Outputs 20dB
AUX Send (Pre) Unbalanced 5V
AUX Send (Post) Unbalanced 9V
AUX Return (L&R) Balanced 600mV
Group Outputs 3V
Monitor Outputs 1V
Tape Output (L&R) 775mV
Tape Input (L&R) 100mV
SIGNAL TO NOISE RATIO >80dB
POWER SUPPLY AC: 220-240V, 50/60Hz
DIMENSIONS W560 × H111 × D410 mm
WEIGHT 6.70kg
