| Power Capacity | 20W RMS |
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 105dB |
| Usable Frequency Range | 3kHz-15kHz |
| Recommended Crossover | 4kHz 12dB/oct |
| Voice Coil Diameter | 25.4 mm |
| Diaphragm Material | Phenolic Resin |
| Voice Coil Material | Round Copper Wire |
| Voice Coil Former | Nomex |
| Horn Material | ABS with Glass Filled Black Polycarbonate |
| Nominal Coverage Angle | H100° x V80° (-5 dB) |
| Horn Cut off Frequency | 780Hz |
| Mounting Cutout | W235 × H82 mm |
| Overall Dimensions | W270 × H110 × D205 mm |
| Weight | 1.36kg |
CDH-200, Music System, PA Compression Horn Drivers, Speakers

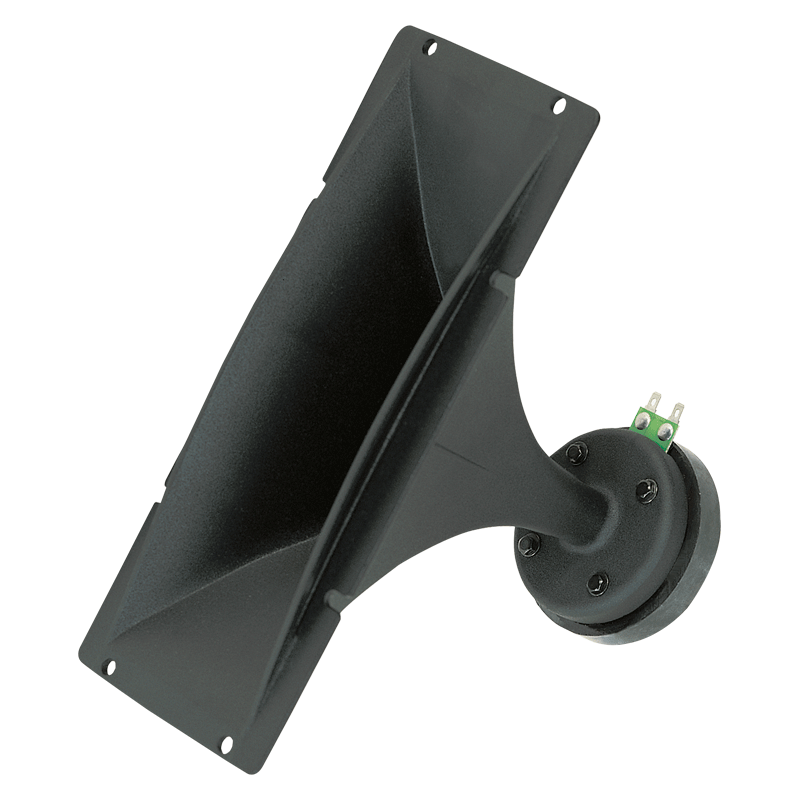

CDH-200
20 WATTS
PA Compression Horn Driver
- Professional compression driver-horn CDH-200 loudspeaker, is suitable for medium power speaker systems. It is ideal for use in a 200W to 300W system. Can be combined with a single Low Frequency speaker like L12-MB150 or L15-MB300, to make an excellent medium power full range speaker system.
₹1,999.00
CompareProfessional compression driver-horn CDH-200 loudspeaker, is suitable for medium power
Based on 0 reviews
Be the first to review “CDH-200”
