| Power Capacity | 50W RMS |
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 106dB (with Horn) |
| Usable Frequency Range | 1,500-18,000Hz |
| Recommended Crossover | 2.5kHz 18db/oct |
| Voice Coil Diameter | 44.4 mm |
| Diaphragm Material | Titanium |
| Voice Coil Material | Edge Wound Copper Clad Aluminium Ribbon |
| Voice Coil Former | Resin Bonded Kapton |
| Throat Coupling | 1-3/8” 18TPI, Throat Couple No.1 |
| Overall Dimensions | Ø115 × H66 mm |
| Weight | 1.57kg |
CD-50S, Music System, PA Compression Drivers, Speakers

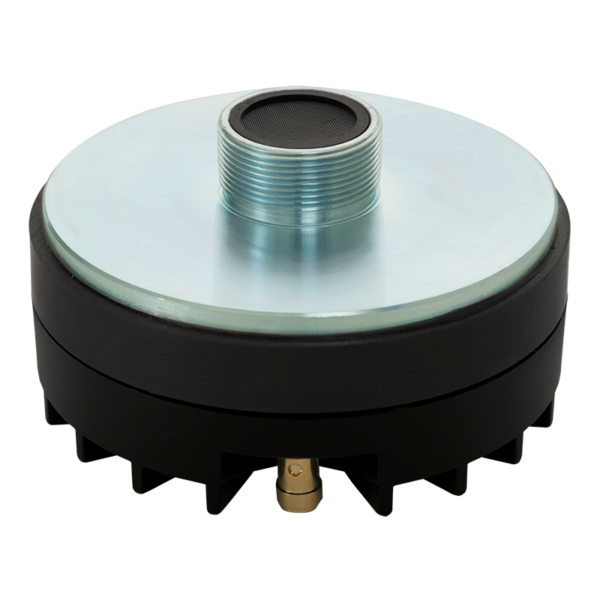

CD-50S
50 WATTS
PA Compression Driver
- Professional compression driver CD-50S, suitable for high power speaker systems. It features TITANIUM diaphragm EDGE WOUND copper clad aluminium ribbon wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L15-MB300, L15-MB400 and L15-MB500.
₹2,998.00
CompareProfessional compression driver CD-50S, suitable for high power speaker systems. It features TITANIUM diaphragm EDGE WOUND copper clad aluminium ribbon wire voice coil and
Based on 0 reviews
Be the first to review “CD-50S”
