| Power Rating | 2000W RMS |
| Nominal Diameter | 460mm (18”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 98 dB |
| Magnet Weight | 9.04kg |
| Resonant Frequencey (Fs) | 40Hz |
| DC Resistance (Re) | 5.6Ω |
| Electromagnetic Q (Qes) | 0.215 |
| Mechanical Q (Qms) | 10.63 |
| Total Q (Qts) | 0.211 |
| Compliance Equivalent Volume (VAS) | 144.4 Litr |
| Surface Area of Cone (Sd) | 0.1288cm2 |
| Reference Efficiency (ηo) | 4.05% |
| Voice Coil | 5.0” |
| Overhang (Xmax) | 10.9 mm |
| Moving Mass (Mms) | 256.32gm |
| BL Product (BL) | 40.79TM |
| Coil Inductance (Le) | 2.659mH |
| Overall Diameter | 488 ×472 mm |
| Depth | 213 mm |
| Baffle Hole Diameter | 430 mm |
| Bolt Mount Diameter (PCD) | 442 mm (8 Bolts) |
| Weight | 24.40kg |
L18-SW2000, Music System, Professional PA Speakers, Speakers

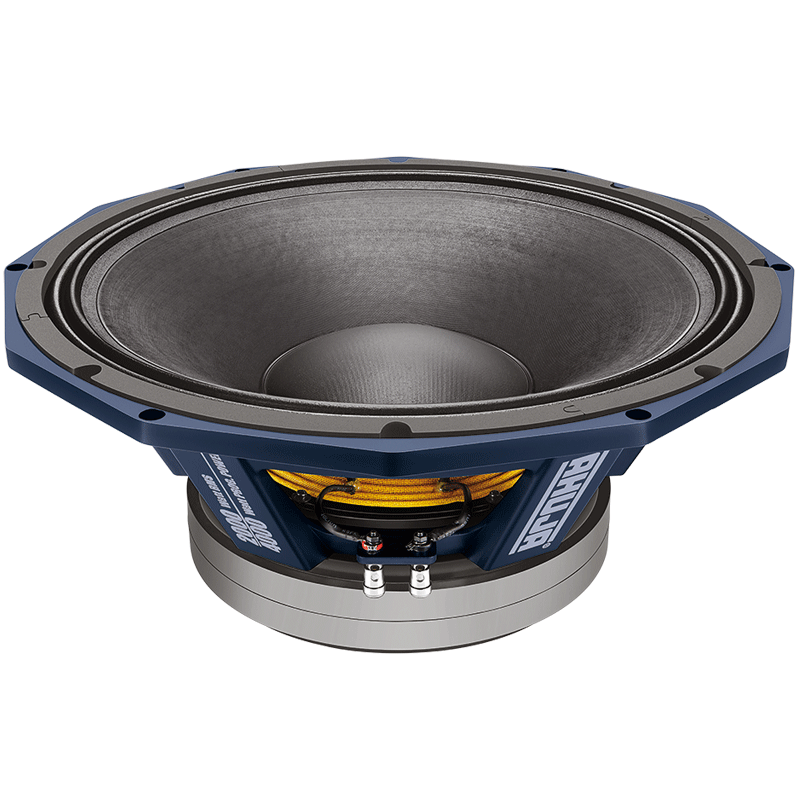

L18-SW2000
Super Power 45.72cm (18”) Extended Low Frequency Speaker
- Strong & Powerful Speaker wtih Extended Low Frequency Response.
- For use in Professional High Power sub-woofer Speaker Systems.
- 12.7cm (5”) I/O copper voice coil for higher efficiency.
- Vented Aluminium Die-cast frame with built-in heat sink for enchanced heat dissipation.
- Higher grade and heavy duty dual ferrite magnet in rigid assembly.
- Double spider design for better excursion control.
₹21,399.00
Compare- Strong & Powerful Speaker wtih Extended Low Frequency Response.
- For use in Professional High Power sub-woofer Speaker Systems.
- 12.7cm (5”) I/O copper voice coil for higher efficiency.
Based on 0 reviews
Be the first to review “L18-SW2000”
