| Power Output | 750W + 750W Max., 500W + 500W RMS at 10% THD 450W + 450W RMS at 5% THD, 415W + 415W RMS at 2% THD |
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V for each zone |
| Power Supply | AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery) |
| Power Consumption | AC: 1600VA DC: 16A |
| Dimensions | W510 × H220 × D440 mm |
| Weight | 40.0kg |
2 Zone PA Power Amplifiers, BTZ-10000, Music System, Power Amplifiers

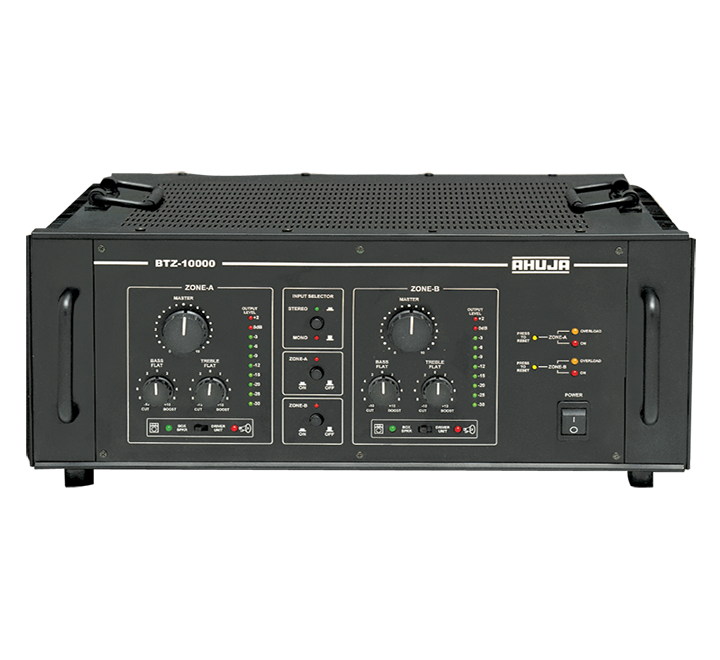

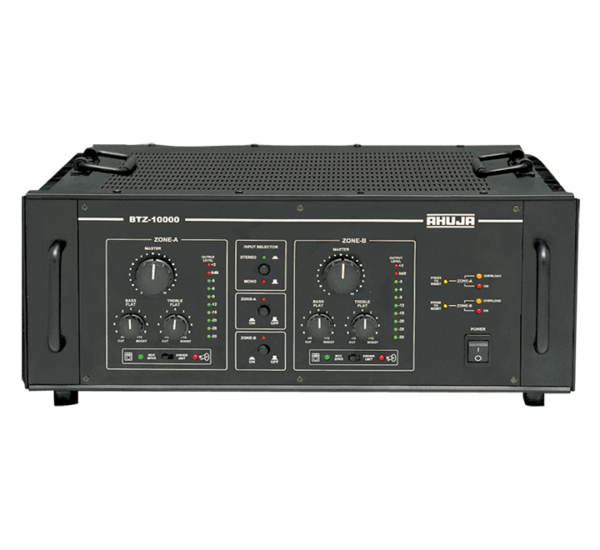

BTZ-10000
1000 WATTS
2 ZONE PA POWER AMPLIFIER
- Ahuja model BTZ-10000 is rugged, reliable, cost-effective 1000 watts Two Zone Amplifier. BTZ-10000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors.
- Stereo Music input for DJ programmes.
- Facilitates connection and operation of two groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuit.
₹50,000.00
Compare- Ahuja model BTZ-10000 is rugged, reliable, cost-effective 1000 watts Two Zone Amplifier. BTZ-10000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors.
